Hino E13C Truck Models FR1E Engine Service Repair Workshop Manual PDF

This is the COMPLETE Service and Repair Manual for the Hino E13C Truck Models FR1E Engine Service Repair Workshop Manual PDF. It covers every single detail.

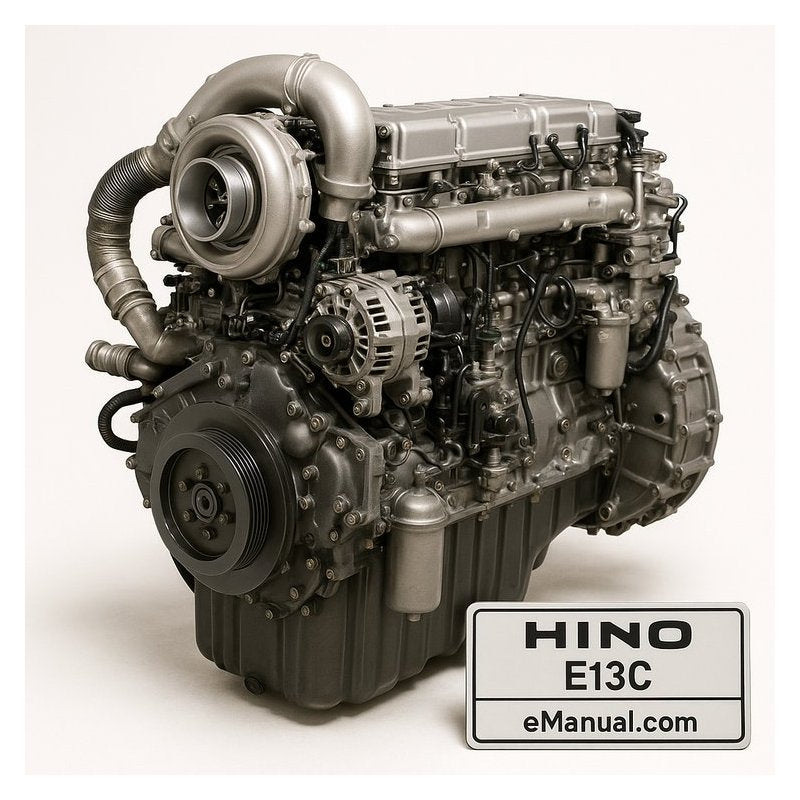

Hino FR1E E13C Truck Models Engine Service Repair Workshop Manual Download PDF VEHICLE/EQUIPMENT INTRODUCTION: The Hino FR1E is a heavy-duty truck model powered by the Hino E13C engine — a 12.9-liter (12,914 cc) in-line six-cylinder turbocharged diesel engine that represents Hino most powerful and technologically advanced commercial truck powerplant. Hino Motors, a subsidiary of Toyota Motor Corporation since 1966, has built its reputation in the commercial vehicle market on reliable, fuel-efficient diesel engines that deliver low total cost of ownership for fleet operators across Asia, Australia, and other export markets. The E13C engine was Hino flagship heavy-duty diesel, designed for long-haul trucking, heavy construction transport, and bus applications where maximum power, excellent fuel economy, and extended service intervals are critical operational parameters. With power outputs ranging from approximately 420 to 500 horsepower depending on the specific tune and emission standard compliance, the E13C uses advanced features including electronically controlled common rail fuel injection, variable geometry turbocharger (VGT), exhaust gas recirculation (EGR) for emission compliance, and in some configurations, a diesel particulate filter (DPF) and selective catalytic reduction (SCR) system. The FR1E truck model is configured as a conventional cab-over or bonneted heavy truck chassis (market dependent) designed to carry significant payload weight over long distances. The combination of the robust Hino engine block, modern emission management systems, and Hino electronic engine control creates a powertrain that demands specialized diagnostic knowledge — making a comprehensive service manual essential for shops maintaining Hino heavy truck fleets. The E13C engine architecture is also used across multiple Hino truck model families, making this manual valuable maintenance reference for any Hino heavy truck equipped with this engine. SERVICE AND REPAIR SCOPE: - E13C engine complete overhaul — cylinder head removal, valve clearance adjustment (EGR-equipped engines require special attention), injector rail removal, and common rail injector replacement - Electronic fuel injection system — common rail pressure sensor testing, injector coding and calibration, high-pressure supply pump inspection, and fuel rail pressure regulation - Turbocharger service — variable geometry turbocharger (VGT) actuator function check, compressor and turbine wheel inspection, wastegate or VGT vane cleaning, and turbo bearing clearance - EGR system maintenance — EGR valve removal and cleaning, EGR cooler flow test, carbon deposit removal from EGR passages, and EGR temperature sensor calibration - DPF and aftertreatment (if equipped) — DPF differential pressure check, forced regeneration procedure, SCR catalyst inspection, and DEF (urea) injection system service - Engine valve adjustment — precise valve lash setting procedure for EGR-equipped head, tappet selection, and cam lo
