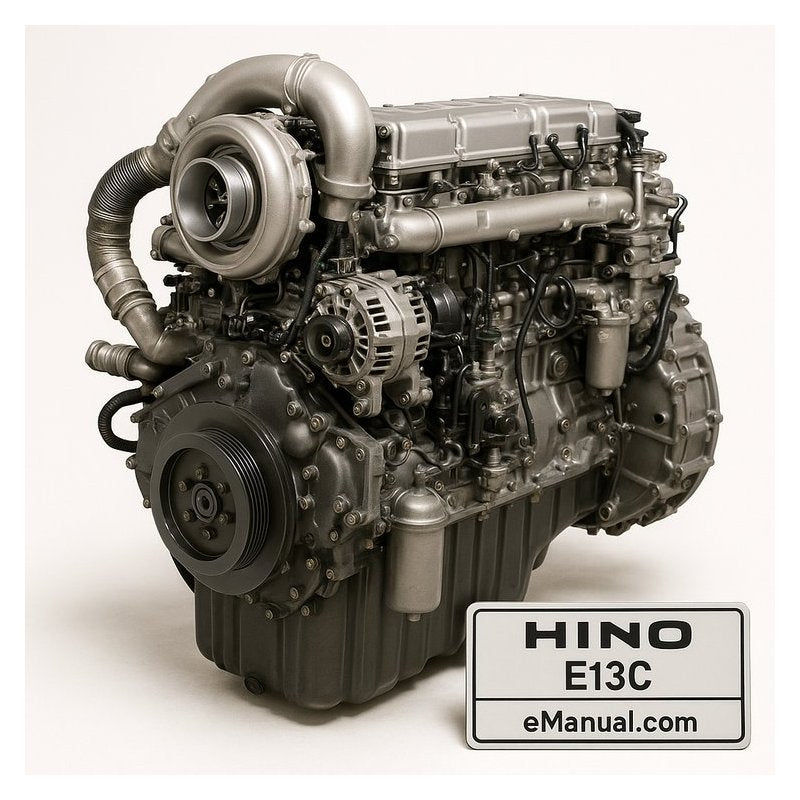

Hino E13C Truck Models FS1E Engine Service Repair Workshop Manual PDF

This is the COMPLETE Service and Repair Manual for the Hino E13C Truck Models FS1E Engine Service Repair Workshop Manual PDF. It covers every single detail.

Hino FS1E E13C Truck Models Engine Service Repair Workshop Manual Download PDF VEHICLE/EQUIPMENT INTRODUCTION: The Hino FS1E is a heavy-duty truck chassis from Hino Motors, the commercial vehicle division of Toyota Motor Corporation. While sharing the same Hino E13C engine as the FR1E model, the FS1E variant is typically configured for different duty cycle applications — often serving as a rigid truck chassis for specialized bodies including concrete mixer trucks, crane carriers, heavy dump trucks, and specialty transport configurations where the FS1E frame rails, axle configuration, and body mounting points are optimized for the specific vocational application. The E13C engine remains the heart of the FS1E, providing the same 12,914 cc inline six-cylinder turbocharged diesel powerplant with electronic common rail injection, variable geometry turbocharging, and advanced emission management technology. What differentiates the FS1E application is often the engine tuning and PTO (power take-off) integration — vocational trucks frequently tap engine power to drive auxiliary equipment such as concrete mixer drums, hydraulic crane pumps, dump body hoists, and winch systems. This additional power extraction places different thermal and mechanical loads on the engine compared to highway haulage, making proper maintenance and service interval adherence even more critical. Hino heavy trucks are engineered for the rigorous conditions of Asian and Australian commercial transport, where long distances between service centers and high ambient operating temperatures demand robust component design and generous service interval margins. The E13C engine wet cylinder liner design allows for in-frame rebuilds without removing the engine from the chassis — a significant advantage for fleet operators who need to minimize vehicle downtime. The comprehensive service manual covers both highway and vocational application service requirements. SERVICE AND REPAIR SCOPE: - E13C engine in-frame overhaul — cylinder head removal and valve job, wet liner inspection and seal replacement, piston ring replacement without engine removal - PTO system service — PTO drive gear inspection, PTO engagement mechanism testing, clutch pack replacement, and PTO output shaft seal service - Electronic common rail fuel system — injector removal and bench testing, fuel rail pressure sensor calibration, supply pump flow rate test - Variable geometry turbocharger maintenance — VGT actuator position sensor calibration, vane mechanism carbon cleaning, shaft play measurement - EGR system — valve seat inspection, cooler flow test, carbon removal from mixing chamber, and EGR differential pressure sensor check - Aftertreatment service — DPF soot load measurement, forced regeneration procedure, SCR injector cleaning, and DEF line purge - Engine valve lash adjustment — tappet clearance setting with EGR thermal expansion compensation, cam profile wear limits - Cooling system heavy-duty service — radiator pr
