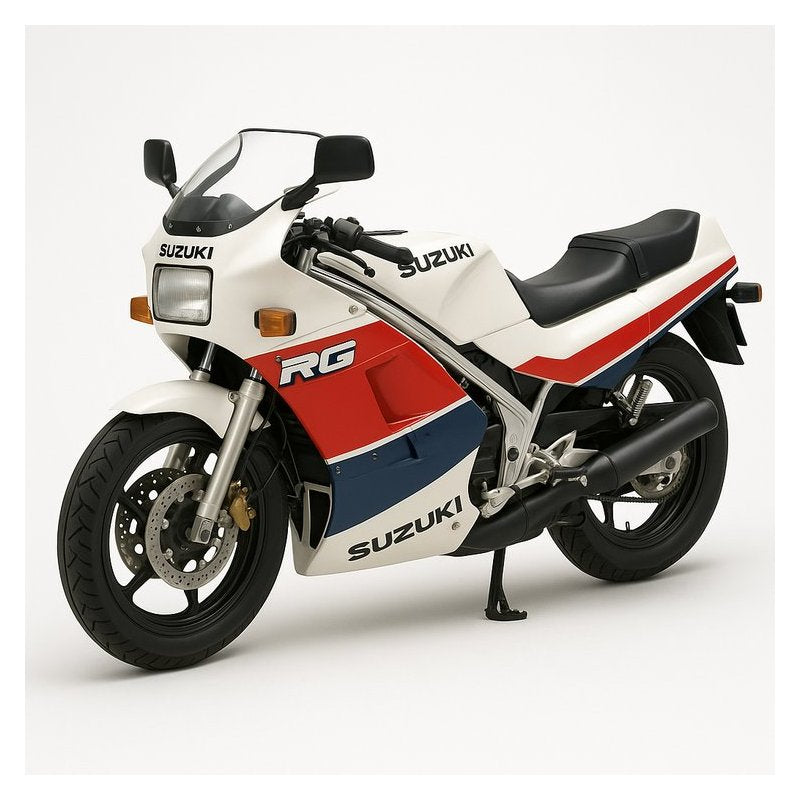

1985-1996 Suzuki RG Series RG125 Gamma Service Repair Workshop Manual

This is the COMPLETE Service and Repair Manual for the 1985-1996 Suzuki RG Series RG125 Gamma Service Repair Workshop Manual. It covers every single detail.

1985-1996 Suzuki RG Series RG125 Gamma Service Repair Manual VEHICLE/EQUIPMENT INTRODUCTION: The Suzuki RG125 Gamma is a legendary two-stroke sport motorcycle that dominated the 125cc performance class throughout the late 1980s and into the 1990s. Built by Suzuki Motor Corporation, the Gamma name represented the pinnacle of two-stroke road racing technology brought to production motorcycles. The RG125 featured a liquid-cooled, two-stroke single-cylinder engine with Suzuki exhaust power valve system (Suzuki Automatic Power Valve or SAIV), which broadened the powerband significantly compared to earlier fixed-port designs. This motorcycle was particularly popular in European and Asian markets where 125cc learner-legal categories created strong demand. Suzuki equipped it with a perimeter aluminum frame, upside-down forks, a mono-shock rear suspension, and aggressive sportbike styling that mirrored its larger RGV250 and RGV500 siblings. The full fairing reduced drag and gave it genuine sportbike aerodynamics, while the high-revving two-stroke engine delivered exciting performance with a signature power band that rewards skilled riding. SERVICE & REPAIR SCOPE: - Engine bottom end disassembly including crankshaft and connecting rod inspection - Cylinder removal, inspection, and electroplated bore damage assessment - Piston and piston ring replacement with ring end gap measurement - Exhaust power valve (Suzuki Automatic Power Valve) system disassembly and adjustment - Carburetor overhaul with jetting selection for varying conditions - Cooling system flush, water pump inspection, and radiator pressure test - Clutch overhaul with plate thickness measurement and spring length testing - Transmission disassembly with shift fork and drum inspection - Front fork cartridge rebuild with seal and oil specification - Rear shock absorber service and nitrogen pressure check - Wheel bearing replacement and rim run-out measurement - Brake caliper rebuild with piston seal replacement - Full electrical system diagnosis including CDI ignition testing TECHNICAL SPECIFICATIONS: - Engine: Liquid-cooled two-stroke single-cylinder, 124cc - Bore and stroke: approximately 56.0mm x 50.6mm - Induction: Mikuni carburetor with Suzuki power valve system - Ignition: CDI electronic ignition - Frame: Aluminum perimeter / twin spar design - Front suspension: Upside-down telescopic forks - Rear suspension: Mono-shock with linkage - Front brake: Single hydraulic disc - Rear brake: Hydraulic disc - Transmission: 6-speed constant mesh - Final drive: Chain DIAGNOSTIC INFORMATION: - Crankshaft run-out measurement with dial indicator at flywheel - Cylinder bore wear assessment with bore gauge at multiple heights - Power valve operation test and servo motor function verification - Compression test with minimum acceptable pressure specification - Ignition timing verification with timing light at specified RPM - Carburetor float level setting with needle valve leak test - Clutch plate warp and thi

Instant download — no shipping, no waiting. Access it right away and use it as many times as you need.
