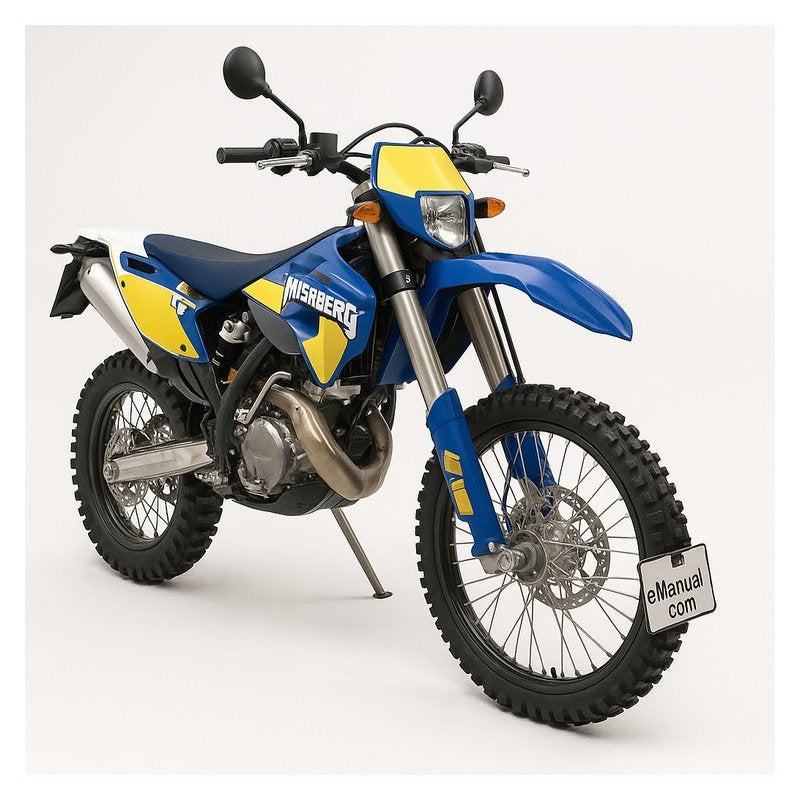

2001-2003 Husaberg TE Models FS400E FS650E Service Repair Workshop Manual

This is the COMPLETE Service and Repair Manual for the 2001-2003 Husaberg TE Models FS400E FS650E Service Repair Workshop Manual. It covers every single detail.

2001 to 2003 Husaberg FS400E FS650E Service Repair Workshop Manual PDF VEHICLE/EQUIPMENT INTRODUCTION: The Husaberg FS400E and FS650E are enduro motorcycles manufactured by Husaberg, a Swedish brand that merged with KTM in the late 1990s. The E designation identifies these as four stroke single cylinder machines, representing Husaberg early push into 4 stroke enduro technology. The FS models are street legal enduro versions designed for dual sport riding combining off road capability with road registration compliance. Powering these models is a vertically mounted single cylinder 4 stroke engine with the FS400E displacing approximately 400 cc and the FS650E delivering around 650 cc. The unique Husaberg design features the cylinder tilted forward approximately 60 degrees from vertical with the fuel tank positioned beneath the seat for centralized mass distribution and improved handling on rough terrain. Husaberg motorcycles have competed at the highest levels of enduro competition and the FS models are street legal variants of their pure competition machines. The chassis features a chrome molybdenum steel trellis frame long travel WP suspension and Brembo brakes providing excellent performance on both trails and paved roads. SERVICE & REPAIR SCOPE: - Engine body top end rebuild including cylinder piston and valve service - Fuel system carburetor jetting cleaning and float level adjustment - Cooling system water pump replacement and thermostat service - Clutch overhaul basket inspection and cable adjustment - Transmission gear shift fork inspection and bearing replacement - Kick starter mechanism service and decompressor adjustment - Electrical system stator testing CDI diagnostics and wiring repair - Alternator output verification and regulator rectifier testing - Suspension fork rebuild shock absorber service - Brake disc replacement and pad inspection - Wheel bearing replacement spoke tension checking - Steering head bearing inspection and preload adjustment - Chain drive sprocket replacement and tension adjustment - Troubleshooting systematic diagnosis of engine and electrical faults - Fuel filter replacement and fuel line inspection TECHNICAL SPECIFICATIONS: - Manufacturer: Husaberg Motorfabrik AB, Sweden, KTM Group - Models: FS400E, FS650E - Engine: 4 stroke single cylinder SOHC, 60 degree forward tilt - Displacement: 400 cc (FS400E) and 650 cc (FS650E) - Carburetor: Keihin or Mikuni depending on year - Cooling: Liquid cooled with water pump and radiator - Frame: Chrome molybdenum steel trellis - Suspension: WP long travel USD forks, WP monoshock - Front brake: Single disc with Brembo caliper - Rear brake: Single disc with Brembo caliper DIAGNOSTIC INFORMATION: - Engine misfire diagnosis using spark tester and compression gauge - Carburetor flooding and lean running condition troubleshooting - Alternator output testing with multimeter at stator connector - CDI unit failure symptoms and substitution testing - Clutch slip diagnosis and basket no

Instant download — no shipping, no waiting. Access it right away and use it as many times as you need.
