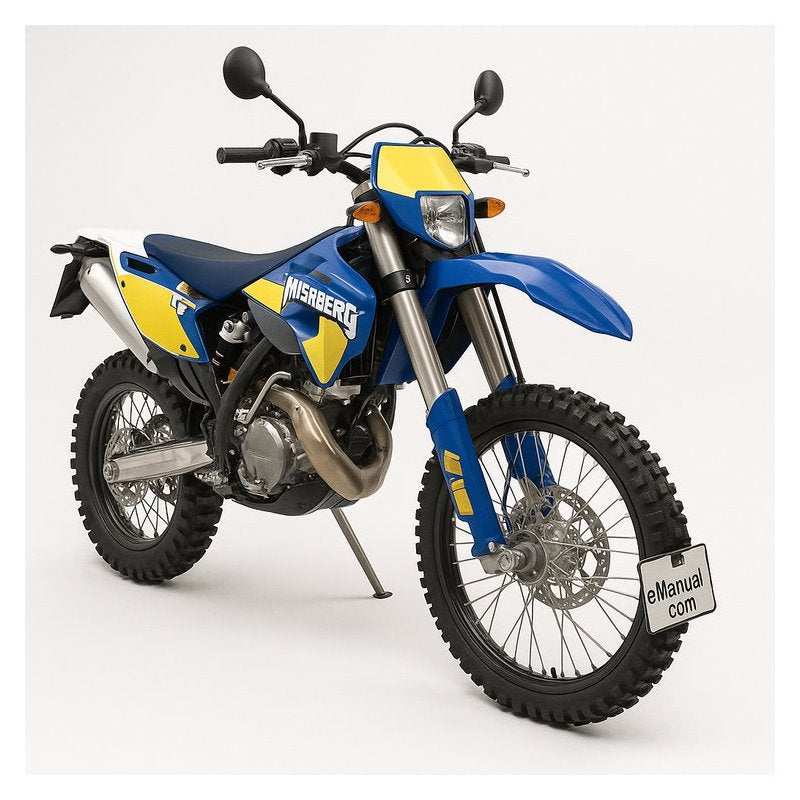

2001-2003 Husaberg TE Models FS450C FS650C Service Repair Workshop Manual

This is the COMPLETE Service and Repair Manual for the 2001-2003 Husaberg TE Models FS450C FS650C Service Repair Workshop Manual. It covers every single detail.

2001 to 2003 Husaberg FS450C FS650C Service Repair Workshop Manual PDF VEHICLE/EQUIPMENT INTRODUCTION: The Husaberg FS450C and FS650C are cross and enduro variants within the FS lineup, produced between 2001 and 2003. The C designation distinguishes these models from the FS400E and FS650E in the lineup. Husaberg, a Swedish manufacturer with a rich racing heritage, was known for its innovative approach to off road motorcycle design. The C models share many characteristics with their E siblings but feature specific tuning and equipment differences that make them distinct. These machines are built around the same proven single cylinder 4 stroke engine platform with the forward tilted cylinder head configuration that became the Husaberg trademark, placing mass closer to the center of gravity for better handling. These motorcycles are designed for riders who want street legal capability combined with serious off road performance. The FS450C and FS650C deliver strong torque and reliable power delivery through their SOHC valve trains. With the FS650C providing maximum torque for trail climbing and the FS450C offering more manageable power for less experienced riders. SERVICE & REPAIR SCOPE: - Engine body top end rebuild valve clearance adjustment - Cylinder piston rings and gasket replacement - Fuel system carburetor cleaning jetting and float adjustment - Cooling system radiator flush water pump impeller inspection - Clutch plate replacement cable adjustment and basket inspection - Transmission gear inspection shift fork and drum wear checks - Kick starter and decompressor mechanism service - Electrical system wire diagnostics and switch testing - Alternator and regulator output testing - Suspension service fork oil change and shock rebuild - Brake pad replacement disc measurement and fluid flush - Steering head bearing replacement and adjustment - Chain drive component measurement and replacement - Troubleshooting systematic diagnosis procedures - Fuel filter replacement and line inspection TECHNICAL SPECIFICATIONS: - Manufacturer: Husaberg Motorfabrik AB, Sweden, KTM Group - Models: FS450C, FS650C - Engine: 4 stroke single cylinder SOHC, 60 degree forward tilt - Displacement: 450 cc (FS450C) and 650 cc (FS650C) - Carburetor: Keihin or Mikuni depending on year - Cooling: Liquid cooled with centrifugal water pump - Frame: Chrome molybdenum steel trellis frame - Suspension: WP upside down front forks, WP monoshock rear - Brakes: Brembo single disc front and rear DIAGNOSTIC INFORMATION: - Compression testing procedures and minimum acceptable values - Carburetor idle and main jet troubleshooting for lean or rich symptoms - Electrical continuity testing for stator coil resistance values - Clutch adjustment verification and slip diagnosis - Valve clearance measurement procedure using feeler gauges - Fork oil leak detection and seal seat verification - Brake disc runout measurement and minimum thickness specification - Chain stretch measurement and sprocket

Instant download — no shipping, no waiting. Access it right away and use it as many times as you need.
