2005-2012 Suzuki UY Step Models 125 Service Repair Workshop Manual

This is the COMPLETE Service and Repair Manual for the 2005-2012 Suzuki UY Step Models 125 Service Repair Workshop Manual. It covers every single detail.

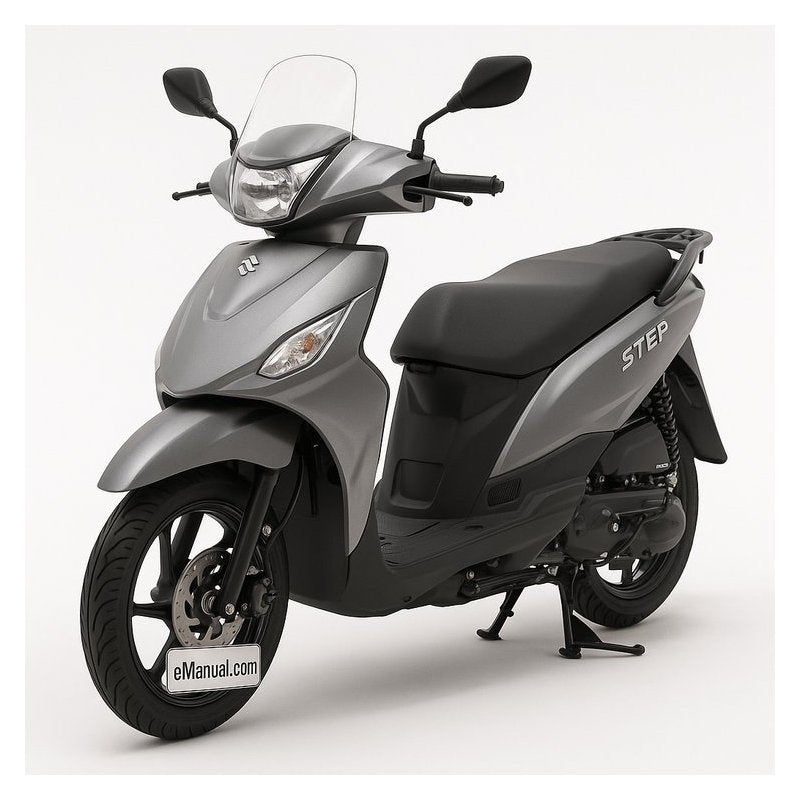

2005-2012 Suzuki UY Step Models 125 Service Repair Workshop Manual PDF The Suzuki UY125 Step (also known as the Suzuki Access in some markets) is a practical, no-nonsense 125cc scooter designed for urban transportation that simply works. Produced from 2005 through 2012, this scooter became one of the most popular 125cc commuters in Asian and European markets thanks to its bulletproof engine, generous storage compartments, and low running costs. The UY125 is powered by a single-cylinder, 4-stroke, air-cooled engine with electronic fuel injection on late models and a carburetor on early iterations, driving the rear wheel through a continuously variable transmission (CVT) with centrifugal clutch -- the standard scooter drivetrain layout that makes riding as simple as twist and go. The flat underseat storage floor (step-through design) allows carrying a full-face helmet, groceries, or work bags with ease. Suzuki's reputation for reliability is fully evident in the UY125, with many examples exceeding 50,000 kilometers with nothing more than basic maintenance. SERVICE AND REPAIR SCOPE - Complete engine removal from frame with wiring and cable disconnection - Cylinder head removal, valve clearance inspection, and cam chain tensioner check - Piston and ring replacement with cylinder bore measurement procedures - Carburetor cleaning, jet replacement, and idle mixture adjustment - CVT transmission disassembly including variator, roller weight, and clutch inspection - Drive belt replacement with proper belt routing and tension check - Clutch shoe inspection, spring replacement, and bell surface cleaning - Front fork oil change with seal replacement and bushing inspection - Rear shock absorber replacement with preload adjustment - Front and rear brake pad or shoe replacement with drum brake adjustment - Brake cable replacement and free play adjustment - Electrical system diagnosis including CDI unit, stator output, and regulator voltage testing - Headlight bulb replacement and dimmer switch testing - Starter motor removal and brush inspection - Oil change with oil filter cleaning and type specification - Throttle cable adjustment and grip free play setting - Air filter element cleaning or replacement for foam type - Tire replacement with balance specifications and pressure recommendations - Battery removal, charging, and terminal maintenance TECHNICAL SPECIFICATIONS - Engine Type: 4-stroke, single cylinder, SOHC, air-cooled - Displacement: Approximately 125cc - Fuel System: Carburetor (early models), Fuel injection (late models) - Transmission: CVT automatic with centrifugal clutch - Front Suspension: Telescopic hydraulic fork - Rear Suspension: Unit swing engine mount with coil spring shock - Front Brake: Disc - Rear Brake: Drum - Seat Height: Approximately 765mm - Wet Weight: Approximately 105 kg - Fuel Capacity: Approximately 6 liters - Underseat Storage: Full-face helmet compatible DIAGNOSTIC INFORMATION - Scooter will not start: Check battery voltage (m

Instant download — no shipping, no waiting. Access it right away and use it as many times as you need.
