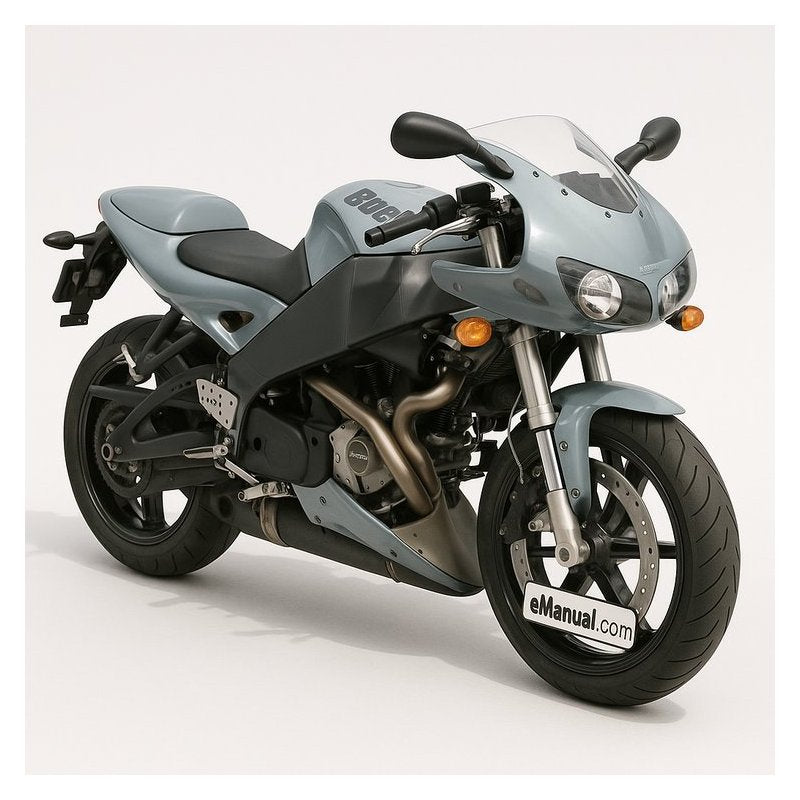

2008 Buell Firebolt XB12R Service Repair Workshop Manual

This is the COMPLETE Service and Repair Manual for the 2008 Buell Firebolt XB12R Service Repair Workshop Manual. It covers every single detail.

2008 Buell Firebolt XB12R Service Repair Manual VEHICLE/EQUIPMENT INTRODUCTION The 2008 Buell Firebolt XB12R carried forward Erik Buell s radical American sportbike concept with continued refinement of the mass-centralization philosophy. At its heart sat Harley-Davidson s 1203cc Revolution engine, a proven pushrod V-twin with twin-spark ignition that delivered exceptional low-end torque and mid-range power delivery ideal for sport riding. This model year maintained the innovative aluminum perimeter spar frame design where the motorcycle chassis wraps around the engine, using the powerplant as a stressed structural member. This approach achieved a center of gravity significantly lower than conventional sportbikes and resulted in a weight distribution of nearly 50/50 front to rear, giving the Firebolt agility that punched well above its weight class on twisty roads. For 2008 the Firebolt featured the same full-faire aerodynamic bodywork with dual-headlight front end, aggressive forward riding position via clip-on bars and rear-set pegs, and the signature ZTL2 front brake system with its massive 375mm perimeter mount disc. The engine management system utilized a 49M3 ECM with programmed fuel injection and ignition mapping optimized for emissions compliance while preserving the characteristic V-twin character that Buell riders expected. SERVICE AND REPAIR SCOPE - Complete engine teardown and rebuild covering cylinders, heads, pistons, crankshaft, and camshaft - Electronic fuel injection throttle body cleaning and idle air control adjustment - Spark plug wire and coil resistance testing with replacement specifications - Exhaust system removal, gasket replacement, and oxygen sensor testing - Transmission gear inspection, shift fork measurement, and detent mechanism service - Clutch plate wear measurement and spring load specifications - Front fork seal replacement with proper oil fill procedures - Rear shock service including bladder charging specifications - Brake system bleeds using DOT 4 fluid and pad wear limit inspection - Drive belt condition assessment and alignment correction procedures - Battery removal, charging system output verification, and stator continuity testing - Instrument cluster diagnostic codes reading and clearing TECHNICAL SPECIFICATIONS - Engine Type: 1203cc Revolution V-twin, 45-degree, 4-stroke, air/oil/fan-cooled - Bore: 90.8mm (3.575 in) - Stroke: 63.0mm (2.480 in) -- note: actual stroke 96.8mm - Compression: 10.0:1 - Valves: Two valves per cylinder, overhead valve pushrod actuation - Spark Plugs: Two per cylinder, gap 0.035 to 0.040 in - Fuel System: Electronic fuel injection with 38mm throttle body - Maximum Power: approximately 92 hp - Maximum Torque: approximately 85 lb-ft - Transmission: 5-speed - Primary Drive: Chain from crankshaft to clutch - Final Drive: Gates Carbon reinforced aramid drive belt, 31-79 tooth ratio - Frame: Aluminum spar perimeter design with engine as stressed member - Front Brake: 375mm ZTL2 float
