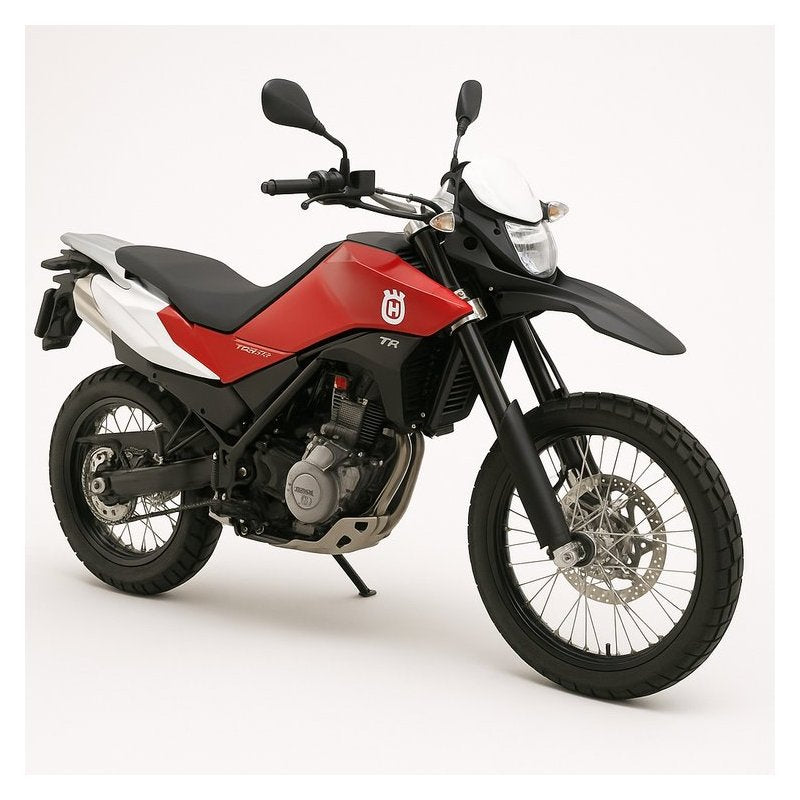

2009-2010 Husqvarna TR650 Models TC TE TXC 250 Service Repair Workshop Manual

This is the COMPLETE Service and Repair Manual for the 2009-2010 Husqvarna TR650 Models TC TE TXC 250 Service Repair Workshop Manual. It covers every single detail.

2009-2010 Husqvarna TC TE TXC 250 Service Repair Manual Download PDF VEHICLE/EQUIPMENT INTRODUCTION: The 2009-2010 Husqvarna TC, TE, and TXC 250 models represented the Italian-Swedish brands strong presence in the high-performance off-road motorcycle market. Husqvarna, a marque with roots in Swedish firearms manufacturing dating to 1689 and motorcycle production since 1903, had by this era been under BMW ownership and was producing some of the most refined off-road machines available. The TC 250 was the motocross variant, the TE 250 was the enduro model, and the TXC 250 was the cross-country off-road variant — each optimized for different riding disciplines while sharing the same core engine and chassis platform. The 250cc four-stroke single-cylinder engine was a high-performance DOHC unit featuring four valves, titanium intake valves, electronic fuel injection, and a lightweight crankshaft for rapid throttle response. The engine architecture drew heavily from Husqvarna racing program developed for both Motocross and Enduro World Championship competition, with features like hydraulic clutch actuation, electric start, and a compact cylinder head design that allowed aggressive lean angles in technical terrain. The fuel injection system used a Keihin or Mikuni throttle body with an engine control module that managed fuel delivery and ignition timing based on multiple sensor inputs. The chassis featured a chromoly steel trellis frame that balanced torsional rigidity with compliance feedback, paired with fully adjustable USD front forks and a rear monoshock with progressive linkage. Husqvarna geometry was known for its precise handling characteristics, particularly in the TXC 250 which was designed for hare scrambles and cross-country racing where sustained high-speed cornering and obstacle negotiation demanded predictable, confidence-inspiring handling. SERVICE AND REPAIR SCOPE: - Engine top end service — cylinder head removal, valve clearance adjustment, camshaft timing verification, and piston inspection - Fuel injection system maintenance — throttle body cleaning, injector ultrasonic cleaning, TPS recalibration, and ECU diagnostic connection - Engine bottom end — crankshaft runout measurement, main bearing replacement, connecting rod big end clearance check - Lubrication system — oil pump inspection, oil filter housing service, breather system maintenance - Hydraulic clutch system — master cylinder seal replacement, slave cylinder service, fluid flushing, and system bleeding - Five-speed gearbox internal inspection — shift fork wear measurement, engagement dog tooth condition, bearing preload check - Clutch basket and hub inspection — groove depth measurement, basket replacement specification, hub damper inspection - Front fork complete rebuild — seal replacement, bushing inspection, oil type and volume specification, air spring service - Rear shock overhaul — nitrogen charge service, bladder inspection, shaft seal replacement, and linkage bearing

Instant download — no shipping, no waiting. Access it right away and use it as many times as you need.
